HSR1000

High-Speed Roll-Up Door

Servo-driven PVC separation door for clean, high-cycle interior traffic.

Get a Project QuoteReview Details ↓
High-Speed Roll-Up Door by LEFAST
Maximum opening5,000 × 5,000 mm
Opening speed0.6–1.2 m/s
Curtain0.8 mm reinforced PVC
Power supply220 V / 13 A / single phase

PRODUCT OVERVIEW

Engineered around the duty of the opening

HSR1000 is a fast interior separation door built around anodized aluminium guides, a reinforced PVC curtain and LEFAST servo control. It supports dust, insect and environmental separation while keeping people and vehicle flow moving through food, pharmaceutical, electronics and general manufacturing areas.

01

Anodized aluminium guide columns with separated track and wiring cavities

02

Brush side seals and EPDM bottom seal for controlled-area separation

03

Infrared safety protection with optional bottom safety edge

04

Adjustable servo control with fault display and project signal interfaces

05

Optional full-width transparent vision panel with aluminium wind bars

PRODUCT & INSTALLATION VIEW

See the structure in real applications

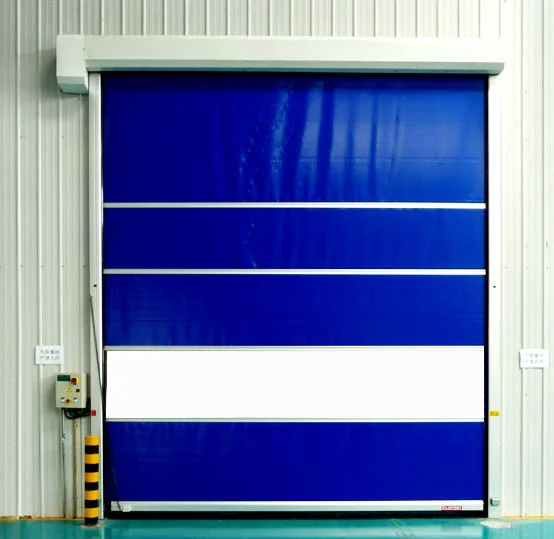

High-Speed Roll-Up Door installation viewHigh-Speed Roll-Up Door project detailHigh-Speed Roll-Up Door application

TECHNICAL DETAILS

Confirmed product configuration

Final dimensions, control logic and installation interfaces are confirmed against the project opening before production.

ModelHSR1000
Opening width1,250–5,000 mm
Opening height1,500–5,000 mm
Opening speed0.6–1.2 m/s, adjustable
Closing speed0.6 m/s, adjustable
Curtain material0.8 mm high-strength fibre-reinforced PVC
Vision panel1.2 mm transparent PVC, optional
ActivationPush button, radar, loop detector, pull cord, remote, Bluetooth RF or interlock

WHERE IT FITS

Applications

  • Food processing areas
  • Pharmaceutical production
  • Electronics manufacturing
  • Clean interior logistics routes
  • Dust and insect control zones

PROJECT CONFIGURATION

Options to confirm

  • Grey, blue or yellow curtain
  • Full-width transparent vision panel
  • Additional wind bars for taller openings
  • Radar, loop, remote, Bluetooth RF and pull cord
  • Dual-door interlock and remote-control interfaces
